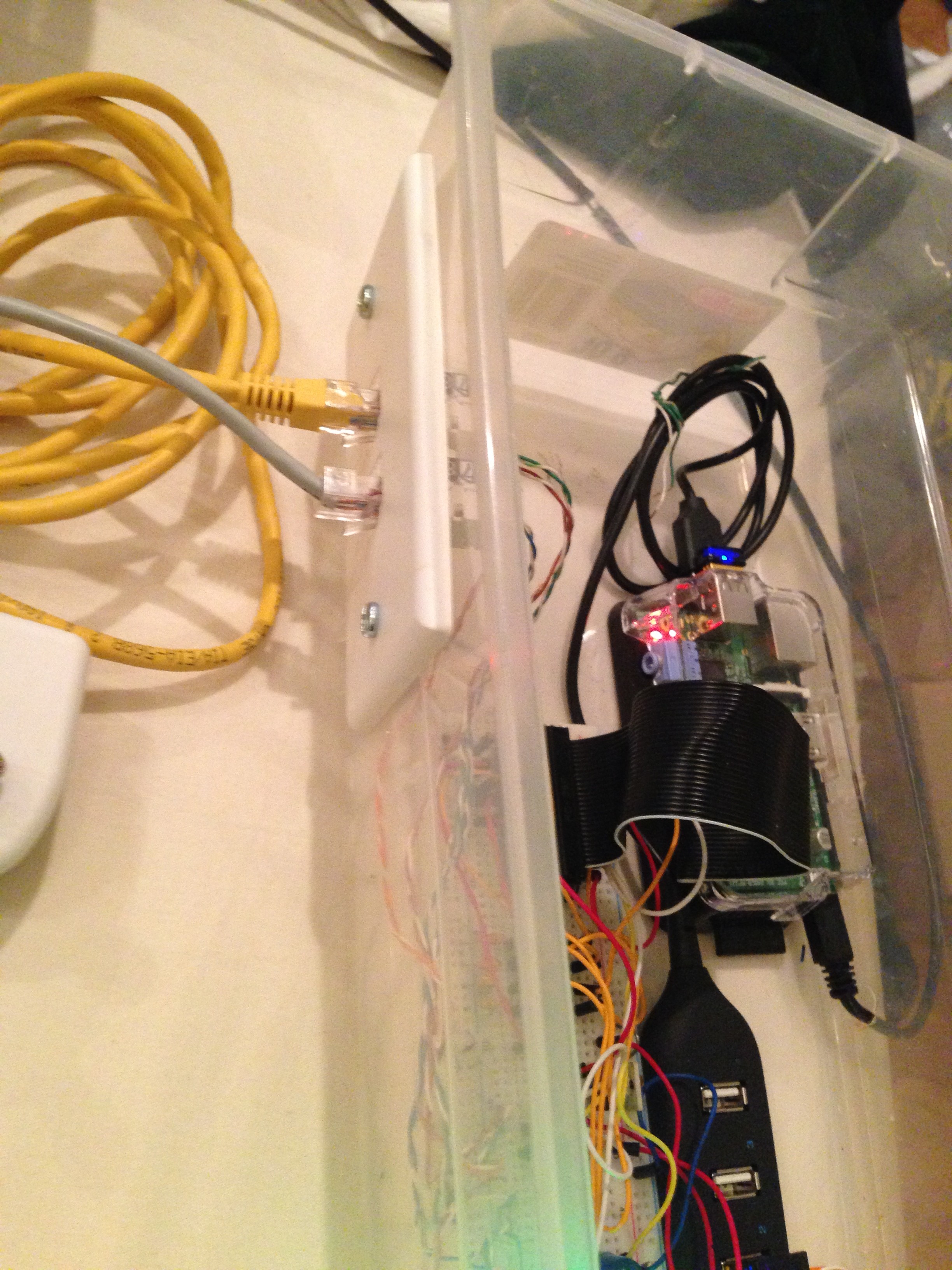

- Built in a Rubbermaid container, with Cat5 keystone jacks to connect the controllers and strobe
-

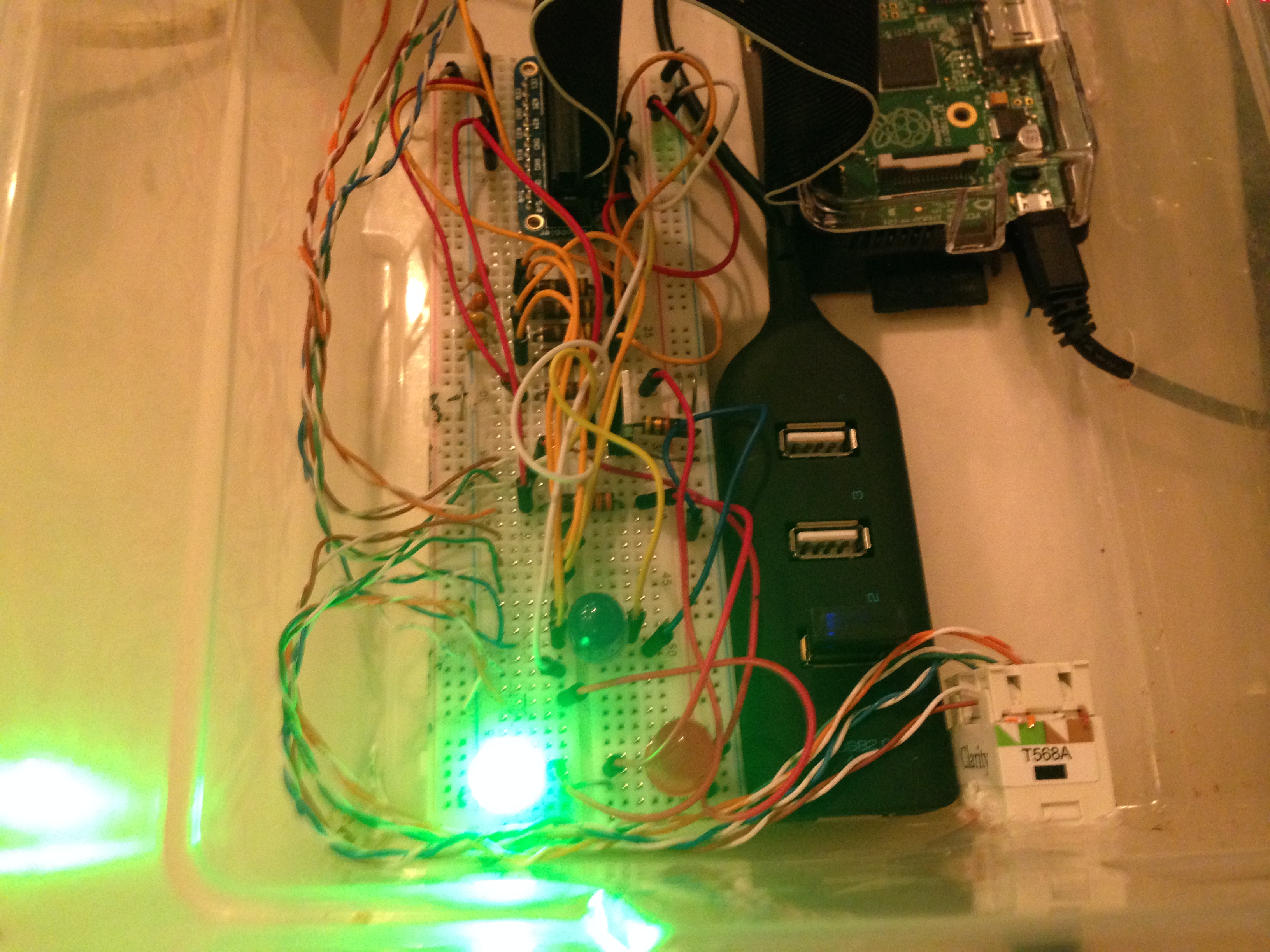

- The Breadboard
-

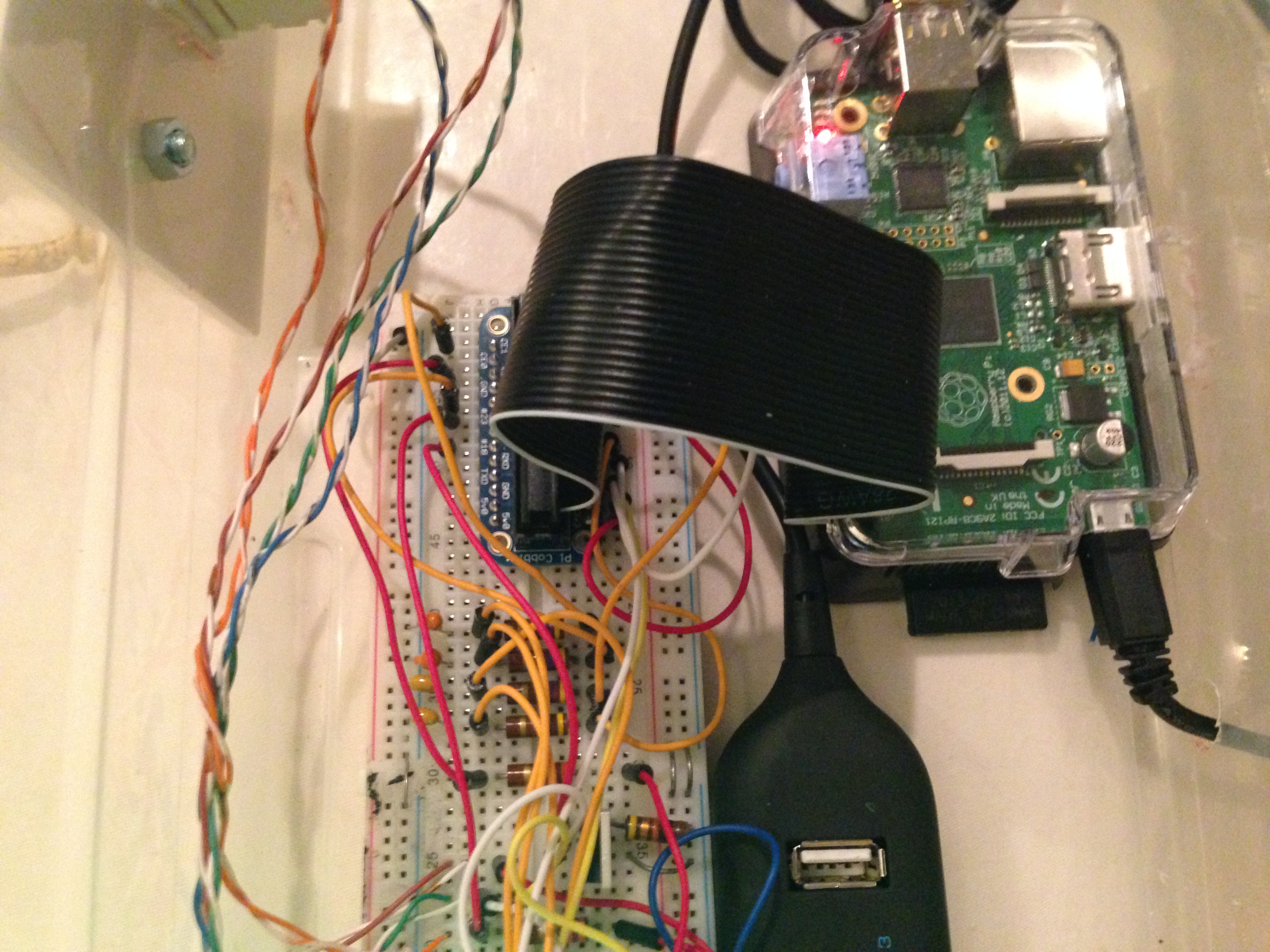

- Not super pretty, but not bad for a first project…
-

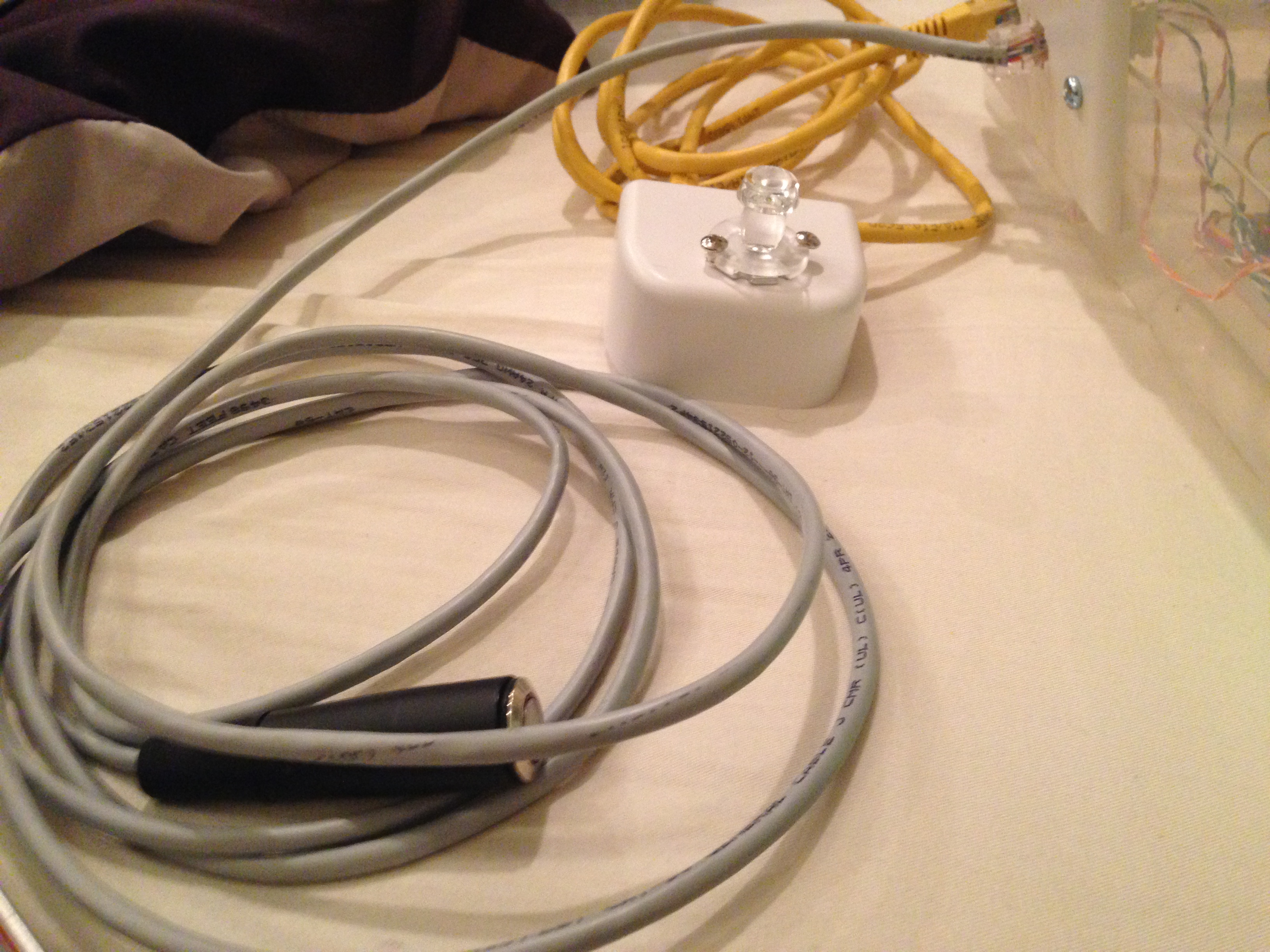

- The auxiliary start/false start control, plus the strobe light.
-

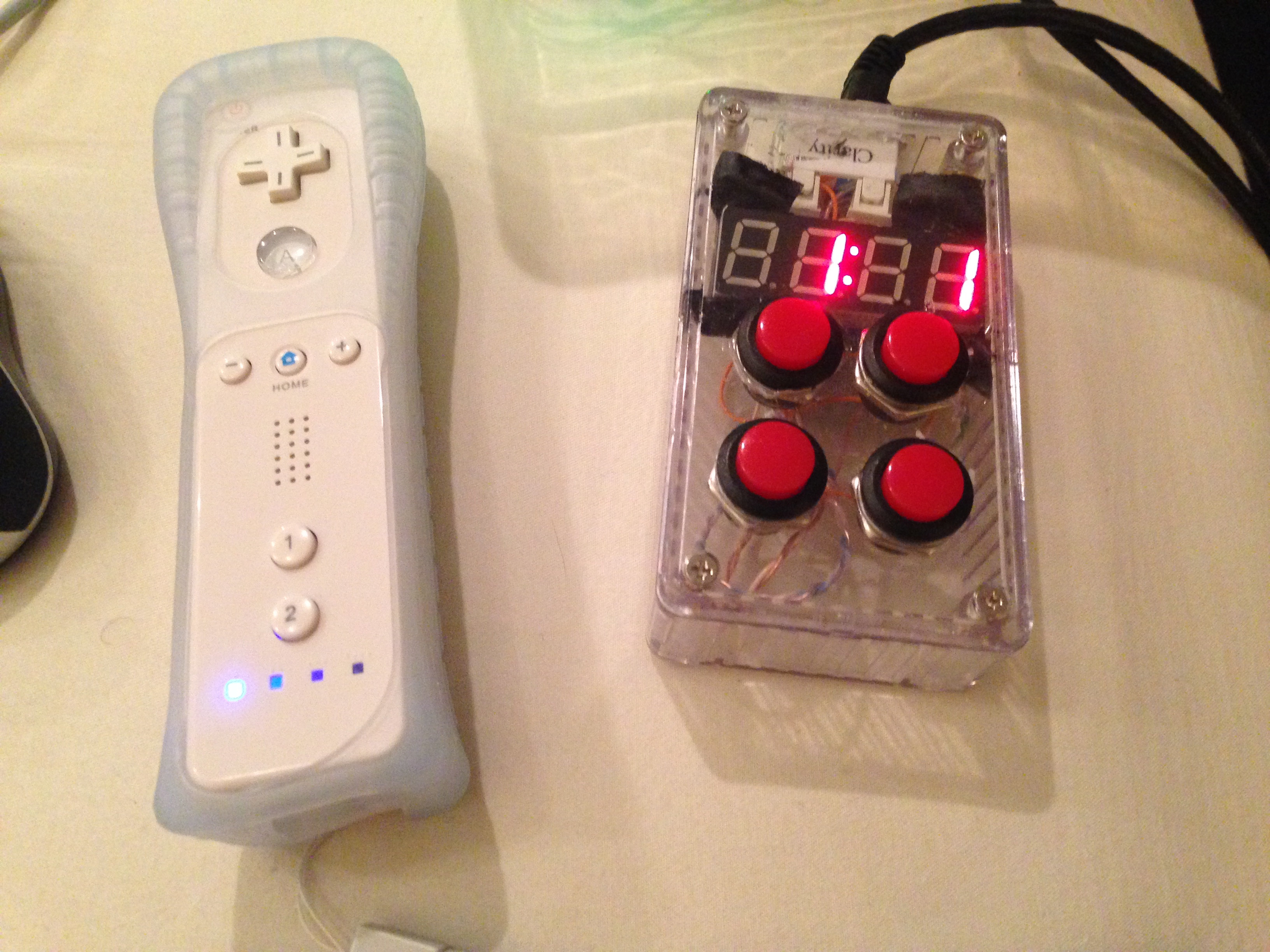

- Primary controllers: An aftermarket Wiimote via bluetooth and a custom 4-pushbutton controller and LED display.
-
- The GUI that is displayed on the HDMI output (but is showing on my laptop via VNC for now…)
-

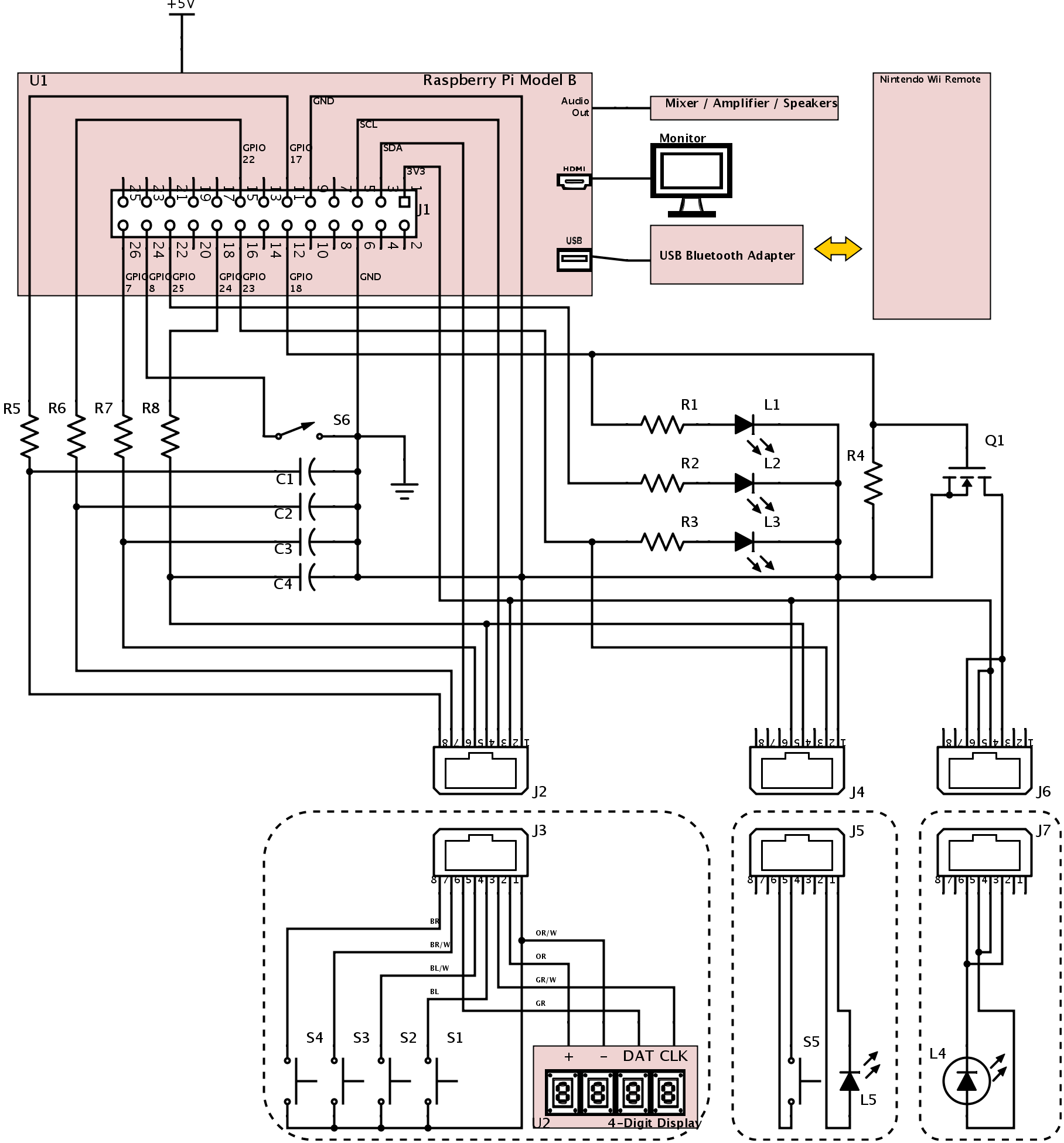

- Preliminary Schematic
-

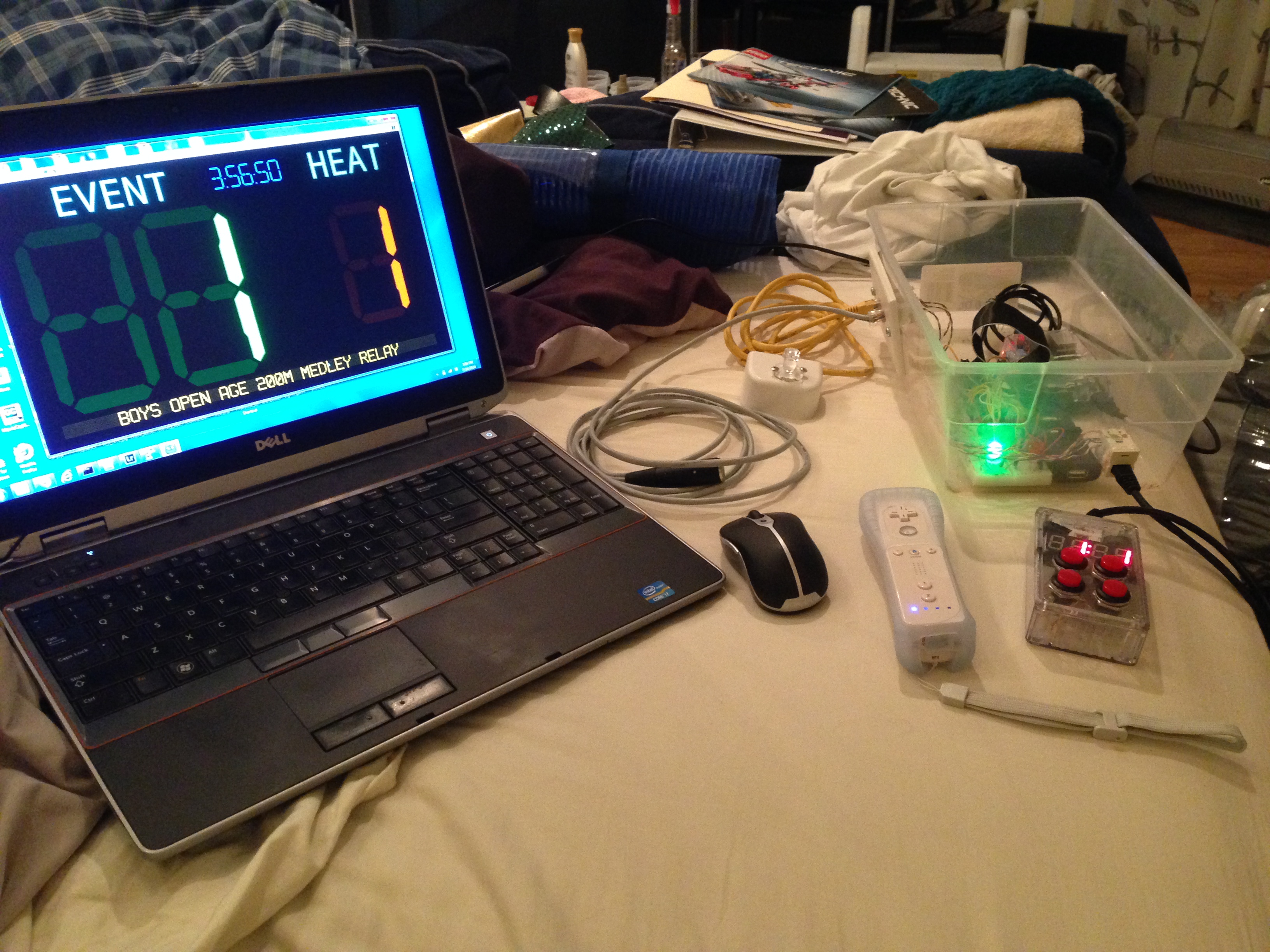

- The system in action!
